How to display serial port's incoming data on a dashboard

Problem scenario:

I want to parse incoming data string into different variables and then have a dashboard with gauges, indicators, charts, etc.

Requirements:

It is assumed that:

You've created a configuration (using the "Green Plus" button in the main window and configured communication parameters (baud rate, the number of data bits, flow control, etc.) in the data logger and can receive any data without communication errors.

Solution:

General description

You may combine our two software products: Data Logger Suite: Logging and Monitoring and OPC Scada Viewer. The data logger will receive, process, parse incoming data, and export it using the built-in OPC server. It will allow you to get real-time data in any OPC compatible software. OPC Scada Viewer can visualize data from any OPC DA and DA2 server.

Rs232 data parsing

First of all, you need to configure a parser. The parser will parse incoming data string into different variables.

Say, for example, you have configured a parser to extract one floating-point value with the "VALUE1" name.

Activating the built-in OPC server

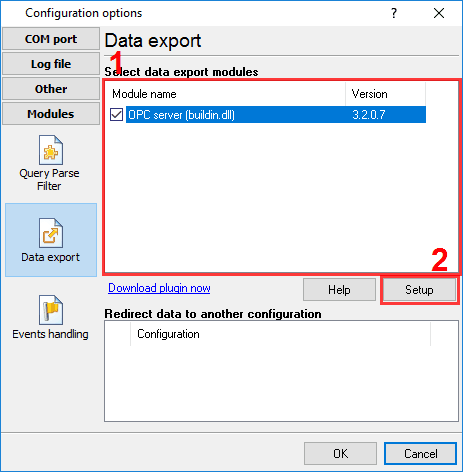

You need to enable the OPC server plugin on the "Data export" page (fig.1).

Enabling the OPC server for RS232 data
Fig.1. OPC server plugin

Configuring the OPC server

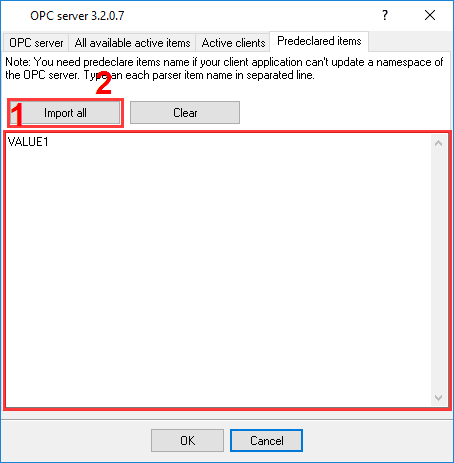

Please, open a configuration window of the OPC server plug-in (click the "Setup" button near a drop-down box fig. 1, pos.2). The dialog window will appear on the desktop (fig. 2).

OPC settings
Fig.2. OPC settings

  1. Specify names of your parser items (one per row);
  2. You may also try to import all names from the parser automatically. Note: some parsers don not allow import names. In this case, specify all names manually.

Connecting to the OPC server

Please, verify that you have configured DCOM as described here. Launch the OPC Scada Viewer software (fig. 3).

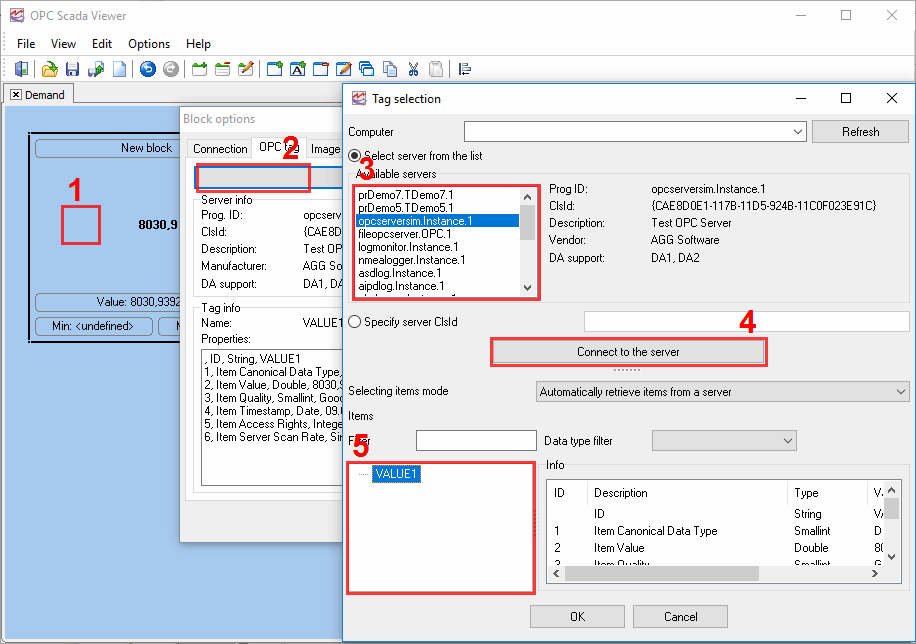

OPC Scada Viewer settings
Fig.3. Adding a visualization block

  1. Add a page and visualization block;
  2. Go to the "OPC tag" page and click the "Select..." button;
  3. Select the "asdlog" server and connect to the server;
  4. Select your variable name from the list;
  5. Click the "OK" button.

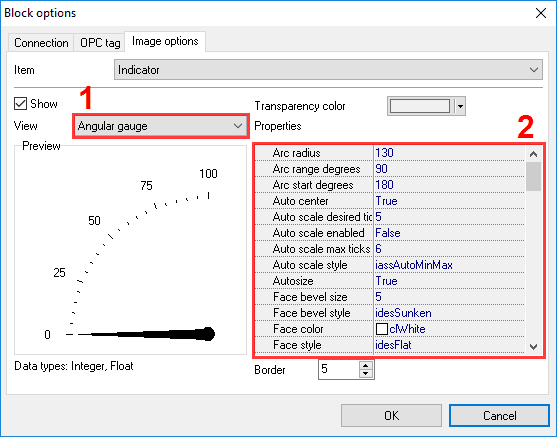

Go to the "Image options" page (fig. 4).

  1. Select a necessary indicator type;
  2. Configure properties.

Visualization indicator type
Fig.4. Indicator
